LF280K 3.2V 280Ah Prismatic Cell

EVE
€80.00
Weight: 5.450 kg
In stock
+ −

Description

LiFePO4 LF280K 3.2V 280K Batteries 280Ah Prismatic Cell with 10000 Cycle Life for PV/Home Energy Storage

Features

Product Information

Manufacturer:
EVE
Model:
LF280K
Battery Type:
LiFePO4
Cell Type:
Prismatic LFP
Battery Grade
:
Grade A

Electrical Features

Capacity:
280Ah
Charging Cut-off Voltage:
3.65V
Discharging Cut-off Voltage :
2.5V
Energy:
896Wh
Energy Density:
163 Wh/kg
Initial Internal Resistance:
≤0.25mΩ
Life Cycles:
8000
Standard Charging Power:
448W
Standard Discharging Power:
448W
Voltage:
3.2V

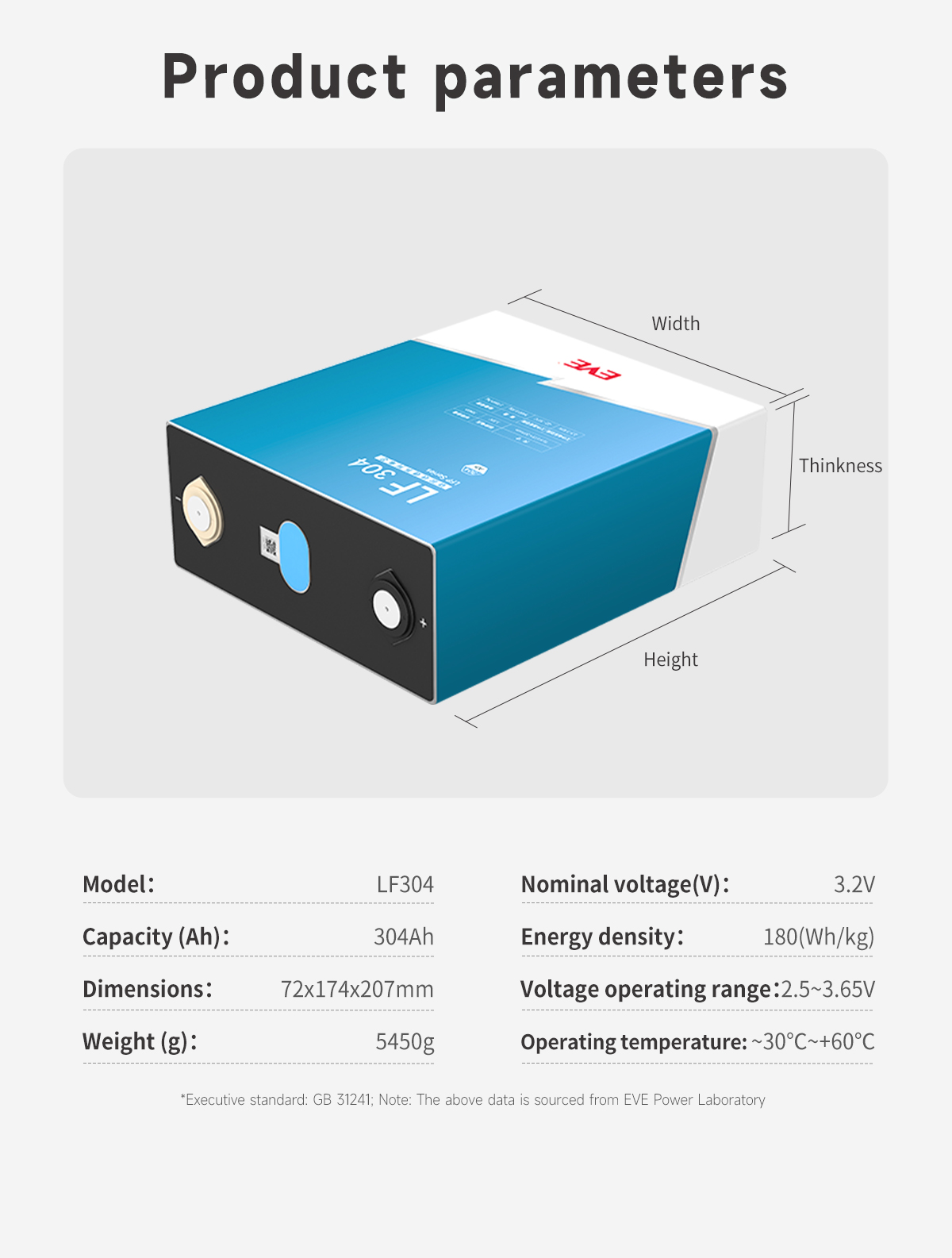

Physical Features

Case Material:
Square aluminum shell structure
Explosion-Proof:
Terminal Type:
M6
Weight:
5.490 kg
Height:
207.2mm
Width:
173.70mm
Thickness:
71.7mm

Operation Temperature

Charging Temperature:
0~60°C
Discharging Temperature:
-30~60°C

Storage Temperature

Storage Temperature - 1 year:
0~35°C
Storage Temperature - 1 month:
-20~45°C

Kit Includes

Bushbars:
Screws:

Other Features

Certifications:
  • GB
  • UL
  • MSDS
  • UN38.3
  • CE

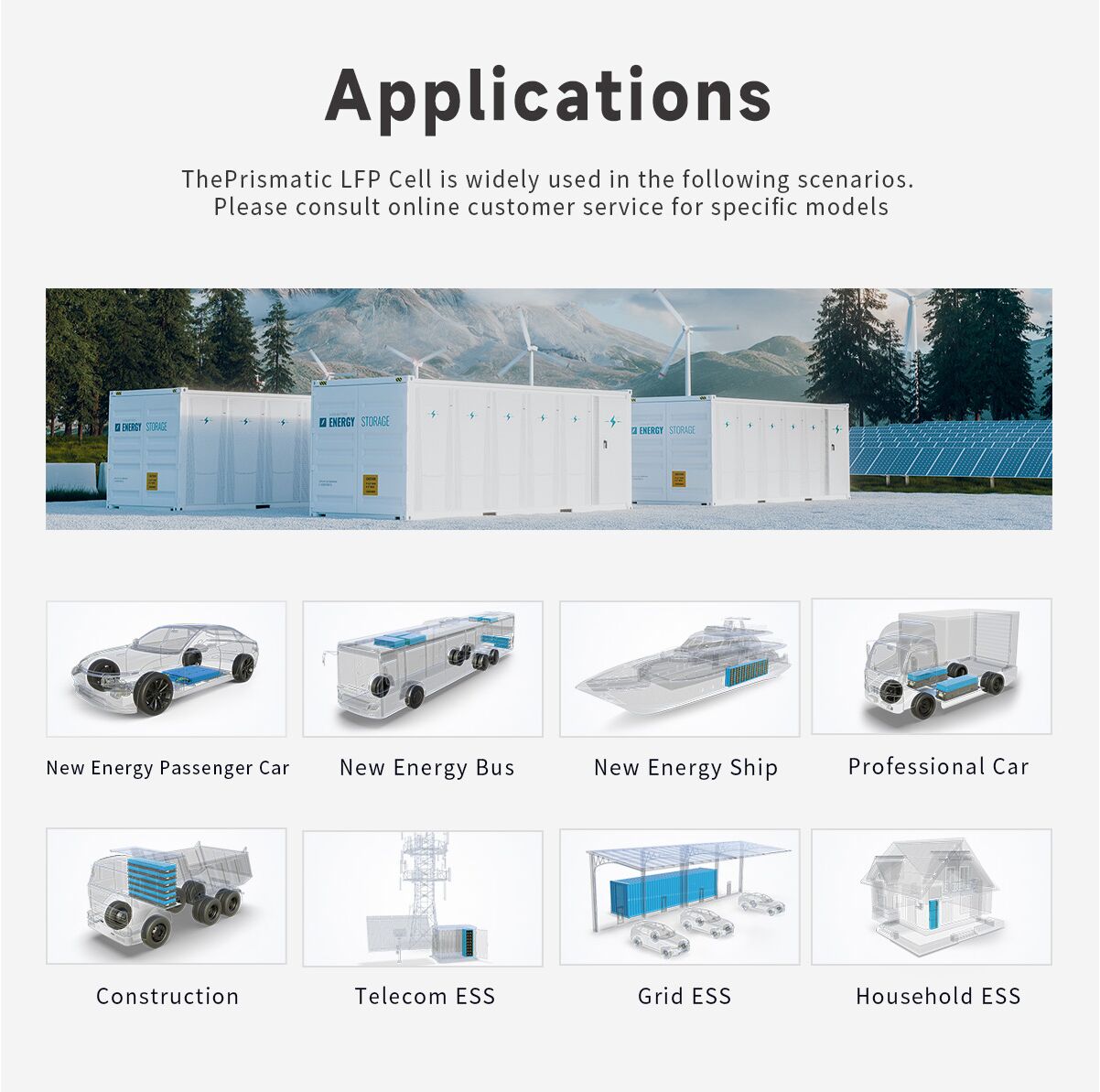

Suitable for:
  • Electric cars
  • Electric trucks
  • Electric vessels
  • Household ESS Energy Storage System
  • Grid ESS Energy Storage System
  • Telecom Solar ESS Energy Storage System
